WR-G315i Wide-Band VHF/UHF receiver 9 kHz - 1.800 MHz
>>> Prices and availability on request!

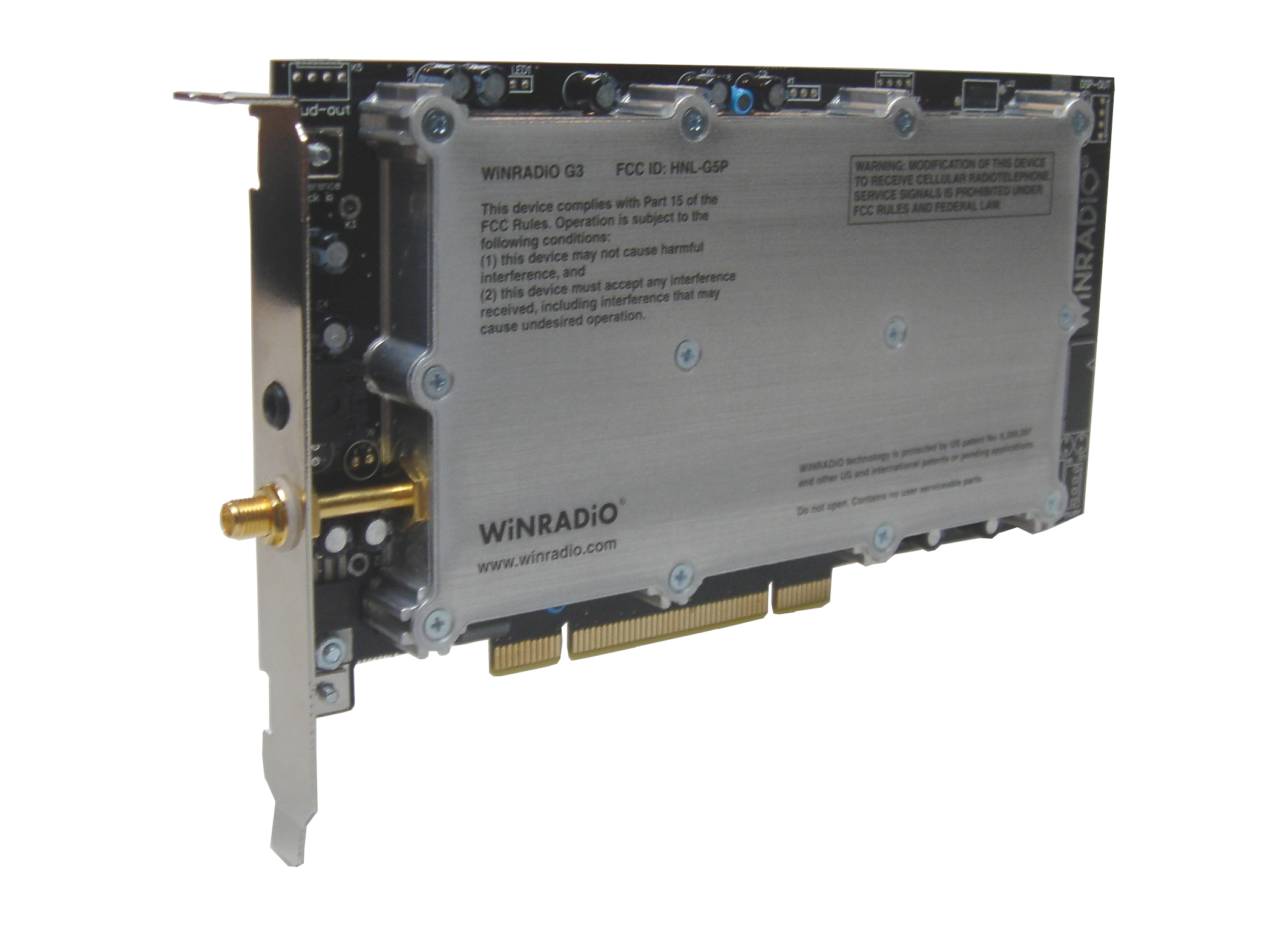

The WiNRADiO WR-G315i is a software-defined high-performance VHF/UHF receiver (9 kHz to 1800 MHz, extendable to 8599 MHz using an optional Antenna Multiplexer and Frequency Extender) on a PCI card. This receiver is intended for government, military, security, surveillance, broadcast monitoring, industrial and demanding consumer applications.
The receiver offers an unparalleled flexibility given its SDR architecture, respectable dynamic range, and high sensitivity. Many useful features complement the receiver, making it capable of filling not only the role of a monitoring receiver but also that of a measuring receiver, such as the calibrated S-meter showing the received signal levels in dBm, µV or S-units, down to the ‑140 dBm noise floor, several spectrum analyzers, and many other features not usually found on receivers of this price.
The PCI card plugs into an available slot of an IBM-compatible PC. Several receivers (as many as there are free PCI slots available) can be controlled by a single PC - an ideal solution for high-performance multi-channel automatic monitoring systems. There is a single SMA antenna connector and an output line audio jack which can be used to connect the receiver output directly to a sound card line-input or an amplified speaker.
The receiver has its own on-board DSP, and does not rely on the PC sound card for its performance. As the DSP performs the final stage IF filtering and all demodulation, this receiver is entirely software-defined, which means that additional demodulation or decoding modes can be easily added by a mere software change. (For example, an optional DRM decoder/demodulator is also available.)No cables or power supplies needed - no clutter on your desk. Every modern desktop computer can be converted into a powerful VHF/UHF monitoring station with minimum fuss.
What's included?
The standard WR-G315i package includes:
- WR-G315i receiver card
- User's guide
- Application download instructions (CD ROM provided on request)
- Start-up antenna
- Audio lead
- BNC-to-SMA adapter
System requirements:
- PC with 500 MHz Pentium CPU or faster
- One free PCI slot
- Windows XP, Vista, Windows 7, 8 or 10
Options
The following factory-fitted hardware options are available for WR-G315i receiver:
- External Reference Oscillator Input Option (/XR): The G315i/XR receiver includes an additional external SMA connector, which can be used to connect an external reference oscillator for the highest possible frequency accuracy. This external oscillator can be any frequency from 8 to 20 MHz (the user specifies this frequency via software). The input is AC coupled and has an internal impedance of 150 ohm. The reference oscillator can be either sine or square wave between 100 mV to 5 V peak-to-peak (Item No. 9257).
- Reference Oscillator Output Option (/RO): The G315i/RO receiver includes an additional external SMA connector, which can be used to output the internal reference frequency. This is useful for situations when the receiver's own internal oscillator is to be used as a reference for other equipment, or, if an external reference is used, to provide this external reference to other receivers in a daisy-chain arrangement. If the receiver relies on its internal reference oscillator, this option will provide 16.384 MHz reference output. If an external oscillator is used, then the external oscillator frequency will be provided at this output. The output is DC coupled, sine-wave at HCMOS levels (i.e. approx 0.6 to 4 V peak-to-peak) with an internal impedance of 150 ohm. It can be directly connected to an external reference oscillator input of another WR-G315i receiver (Item No. 9258).
- Intermediate Frequency 109.65 MHz Output Option (/IF0): The G315i/IF0 receiver includes an external SMA connector, which provides a wide-band IF output (prior to the roofing filters) at the first intermediate frequency of 109.65 MHz (Item No. 9259).
- Intermediate Frequency 10.7 MHz Output Option (/IF1): As an alternative to the previous option, the G315i/IF1 receiver provides a wide-band IF output. The difference is that this option involves an additional internal down-converter which converts the 109.65 MHz IF down to 10.7 MHz (Item No. 9260).
- Intermediate Frequency 16 kHz Output Option (/IF2): This G315i/IF2 receiver provides a narrow-band IF output at 16 kHz, its bandwidth limited by the receiver's 20 kHz roofing filter. This is a useful option for low-cost experiments with Software Defined Radio concepts, because the frequency is low enough to be digitized by a standard PC sound card (Item No. 9261).
- Wide-FM Demodulator Option (/WFM): With the standard WR-G315i receiver, the FMW mode button is disabled and the wide FM demodulation mode is not available. This is because wide FM demodulation cannot be provided within the signal-processing constraints of the WR-G315i software-defined narrow-band receiver architecture. However, wide-band FM demodulation capability is available as a factory-installed option. The wide-band FM demodulator option is in fact a self-contained "hardware-defined" receiver which shares only the main receiver's front-end and first mixer, but has an independent wide-band analog processing circuit with a conventional "hardwired" demodulator. If the Wide FM Option is installed, the FMW button becomes active. The demodulator spectrum display shows real-time spectrum of the demodulated audio. There is also a user-definable audio filter, displayed superimposed over the audio spectrum and graphically adjustable. The order code for a receiver with the Wide-FM Option installed is WR-G315i/WFM (Item No. 9267).
