Special Application Receivers

Special Application Receivers

Special Application Receivers

>>> Prices and availability on request!

Here you will find monitoring receivers for audio engineering applications, marine receivers, sonobuoy telemetry receivers and phase-coherent receivers.


Receivers for Audio Engineering Applications

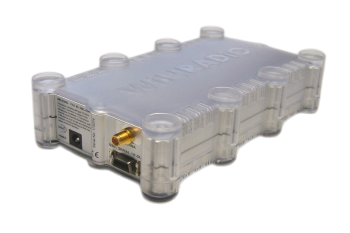

   WR-G33WSM Wireless Spectrum Monitor

The WR-G33WSM model is a high-performance low-cost receiver and spectrum analyzer specially developed for sound engineers and performers who work with wireless microphones and other wireless audio devices. The receiver contains a number of specialist features tailored to audio engineering. Its wide frequency range covers all standard wireless microphone and other VHF/UHF frequencies used in stage production, including the FM broadcast band and point-to-point communications.


Telemetry Receivers

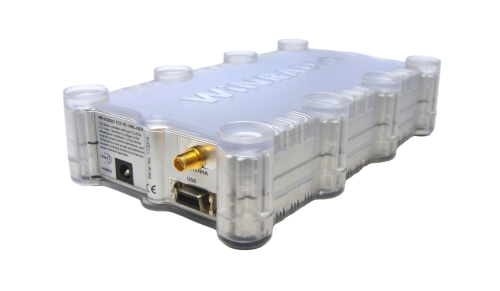

    WR-G33RSS Signal Strength Measurement Module                                                   The WR-G33RSS Signal Strength Measurement Module is a specialized OEM building block suitable for a variety of industrial, scientific and other specialist applications where the ability to measure received signal strength within LF, HF, VHF and UHF frequency range is required.

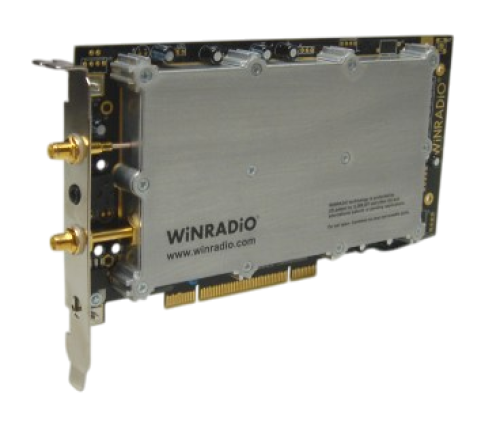

    WR-G39WSBi Sonobuoy Receiver The WR-G39WSBi Sonobuoy Telemetry Receiver is a low-cost, high-performance internal PCI-card-based receiver primarily designed to receive sonobuoy signals in military or civilian marine telemetry applications.

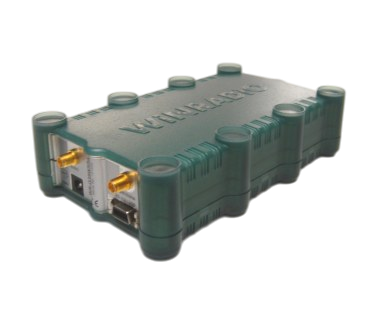

    WR-G39WSBe Sonobuoy Receiver The WR-G39WSBe Sonobuoy Telemetry Receiver is a low-cost, high-performance external USB-based receiver primarily designed to receive sonobuoy signals in military or civilian marine telemetry applications.



Wide-band Phase-Coherent Tuners

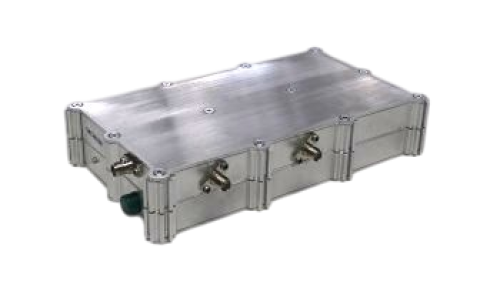

   WR-G526e Wide-band Phase-Coherent Tuner

The WR-G526e Wide-Band Tuner is a modular building block suitable for high-performance surveillance, monitoring and direction finding applications. The tuner can be used either as a stand-alone wide-band front-end for a software-defined receiver, or as a building block for multichannel phase-coherent receiver systems.

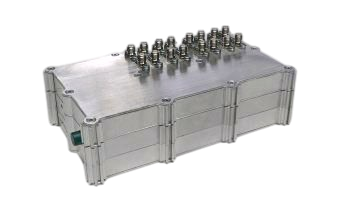

   WR-G527e Wide-band Phase-Coherent Tuner

The WR-G527e Wide-Band Tuner is an improved, higher performance model than the WR-G526e, suited for demanding surveillance, monitoring and direction finding applications. It is primarily suited for multi-channel phase-coherent systems, however it can be also used as a stand-alone wide-band front-end of a software-defined receiver, taking advantage of its excellent phase noise and fast tuning speed.

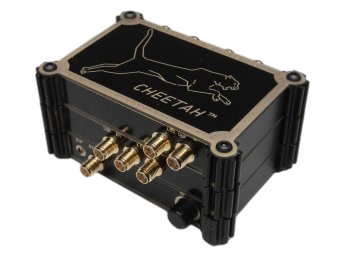

   WR-G528e Miniature Wide-band Phase-Coherent Tuner

The WR-G528e 'CHEETAH' Miniature Wide-Band Phase-Coherent Tuner is a miniaturized, versatile, USB-interfaced high-performance receiver front-end with dual application capability: A single WR-G528e module can be utilized as a compact, single-channel front-end suitable for fast signal intercept, acquisition and monitoring applications. When two identical modules are interconnected to share a common frequency reference (either internal or external), they can form a basis of a dual-channel phase-coherent direction-finding system with excellent phase and amplitude matching characteristics.







WR-G39WSBi Sonobuoy Telemetry Receiver

WR-G39WSBi Sonobuoy Telemetry Receiver


on request

WR-G39WSBe Sonobuoy Telemetry Receiver

WR-G39WSBe Sonobuoy Telemetry Receiver


on request

WR-G33WSM Receiver for Audio Engineering and Telemetry Applications

WR-G33WSM Receiver for Audio Engineering and Telemetry Applications


on request

WR-G33RSS Signal Strength Measurement Module

WR-G33RSS Signal Strength Measurement Module


on request

WR-G528e Wide-Band Phase-Coherent Tuner

WR-G528e Wide-Band Phase-Coherent Tuner


on request

WR-G527e/TM Wide-Band Phase Coherent Tuner Module

WR-G527e/TM Wide-Band Phase Coherent Tuner Module


on request

WR-G527e/RMF Wide-Band Phase Coherent Reference Oscillator and Distributor Module

WR-G527e/RMF Wide-Band Phase Coherent Reference Oscillator and Distributor Module


on request

WR-G527e/RMF-BR DDS-based Reference Oscillator Module with External and Internal Reference Option

WR-G527e/RMF-BR DDS-based Reference Oscillator Module with External and Internal Reference Option


on request

WR-G527e/RMF-XR DDS-based Reference Oscillator Module with External Reference

WR-G527e/RMF-XR DDS-based Reference Oscillator Module with External Reference


on request

WR-G527e/EPF Experimental and demonstration front-end platform

WR-G527e/EPF Experimental and demonstration front-end platform


on request

WR-G528e/DSP Miniature Phase-Coherent DSP Back-End

WR-G528e/DSP Miniature Phase-Coherent DSP Back-End


on request
