product description

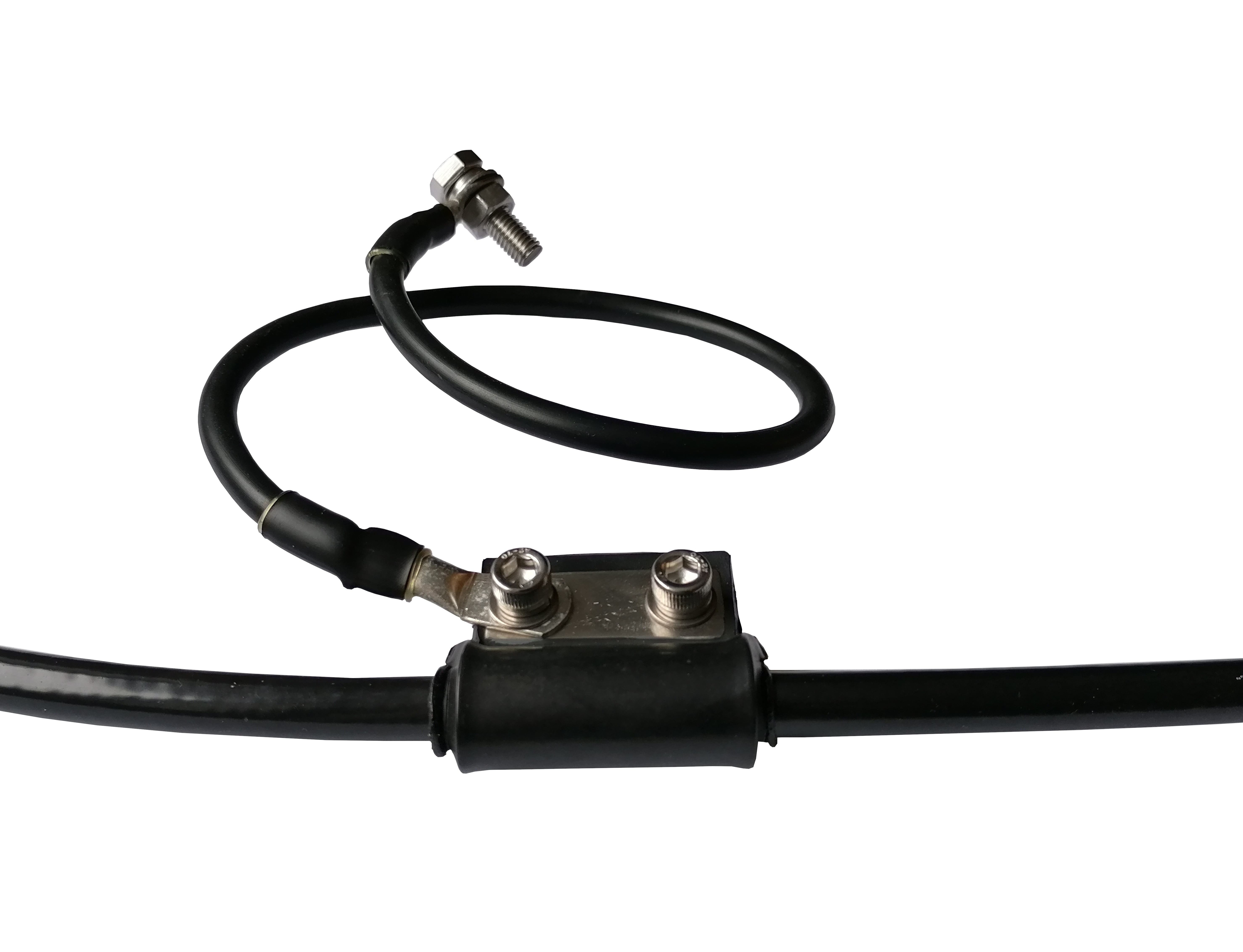

The GC-10 grounding clamp was developed for equipotential bonding on 10 mm coax cables such as AIRCOM PREMIUM, ECOFLEX 10, ECOFLEX 10 Plus etc. This eliminates potential differences (voltages) between the coax cable and the earth potential. Especially during thunderstorms, charging can occur on the antenna or on the coax cable. This charge is removed with the earthing clamp and the connected device is protected. A grounding clamp is not a replacement for lightning protection.
Drawing
Download Data sheet
Download Assembly instructions
Technical data
| Grounding clamp type: | Framework |
| Suitable cable types: | Aircom Premium, Ecoflex 10 and all common coaxial cables with 10 mm outer diameter |
| Contact resistance: | ≤ 5 mΩ |
| Current shock withstanding: | ≥ 20 KA (8/20 µs) |
| Insulation resistance: | 10 GΩ |
| Min. temperature: | -40°C for 24 hours |
| Max. temperature: | 85°C for 24 hours |
| 2011/65/EC RoHS: | Compliant |
| For outdoor use: | Yes, UV-resistant jacket |
| IP protection class: | IP 68 |
Material
| No. | Part | Size | Material |
| 1 | Body / grounding strap | 10 mm | Rubber, SUS304 |
| 2 | Water-seal mastic | Φ5 | Butyl rubber |
| 3 | Braided tape | Copper, tin-plated | |
| 4 | O-ring washer | M6 | Black rubber |
| 5 | Serrated washer | M6 | SUS304 |
| 6 | Inner hex bolt | M6*20 | SUS304 |
| 7 | Cable lug | M6 | Copper, tin-plated |
| 8 | Heat shrinkable tube | Φ9*30 | Polyolefin |
| 9 | Grounding cable | 16 mm² | Copper (conductor), PVC (jacket); approx. 40 cm length |
| 10 | Cable lug | M8 | Copper, tin-plated |
| 11 | Outer hex nut | M8 | SUS304 |
| 12 | Spring washer | M8 | SUS304 |
| 13 | Plain washer | M8 | SUS304 |
| 14 | Outer hex bolt | M8 | SUS304 |
