product description

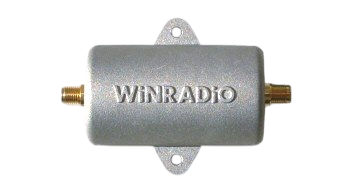

WR-UBF-1800 Universal Broadcast Filter
>>> Prices and availability on request!
The WiNRADiO WR-UBF-1800 Universal Broadcast Filter combines three functions in one package: An FM broadcast (88-108 MHz) band-reject filter, AM broadcast (0-1.75 MHz) band-reject filter, and a 20 dB attenuator. These functions (one at a time) are selectable by the user at installation time.
Simplicity of installation, low insertion loss and wide-band operation make this product suitable for VHF/UHF receivers up to 1.8 GHz, where suppression of broadcast bands is required in order to eliminate intermodulation inteference from strong local stations.
The WiNRADiO WR-UBF-1800 Universal Broadcast Filter is based on high performance multiple-stage passive filters, optimized for rejection of FM or AM broadcast bands. The product is especially suitable for use with WiNRADiO G3 series VHF/UHF receivers, such as WR-G305i, WR-G305e, WR-G315i and WR-G315e models. It can be also used with any third-party receivers.
Features
- Three functions in one device
- Wide frequency range operation
- Flat pass band
- Low insertion loss
- High suppression of broadcast bands
- Rugged weatherproof construction
- Simple installation
