Product.Nr.: 9230

product description


>> Prices and availability on request!

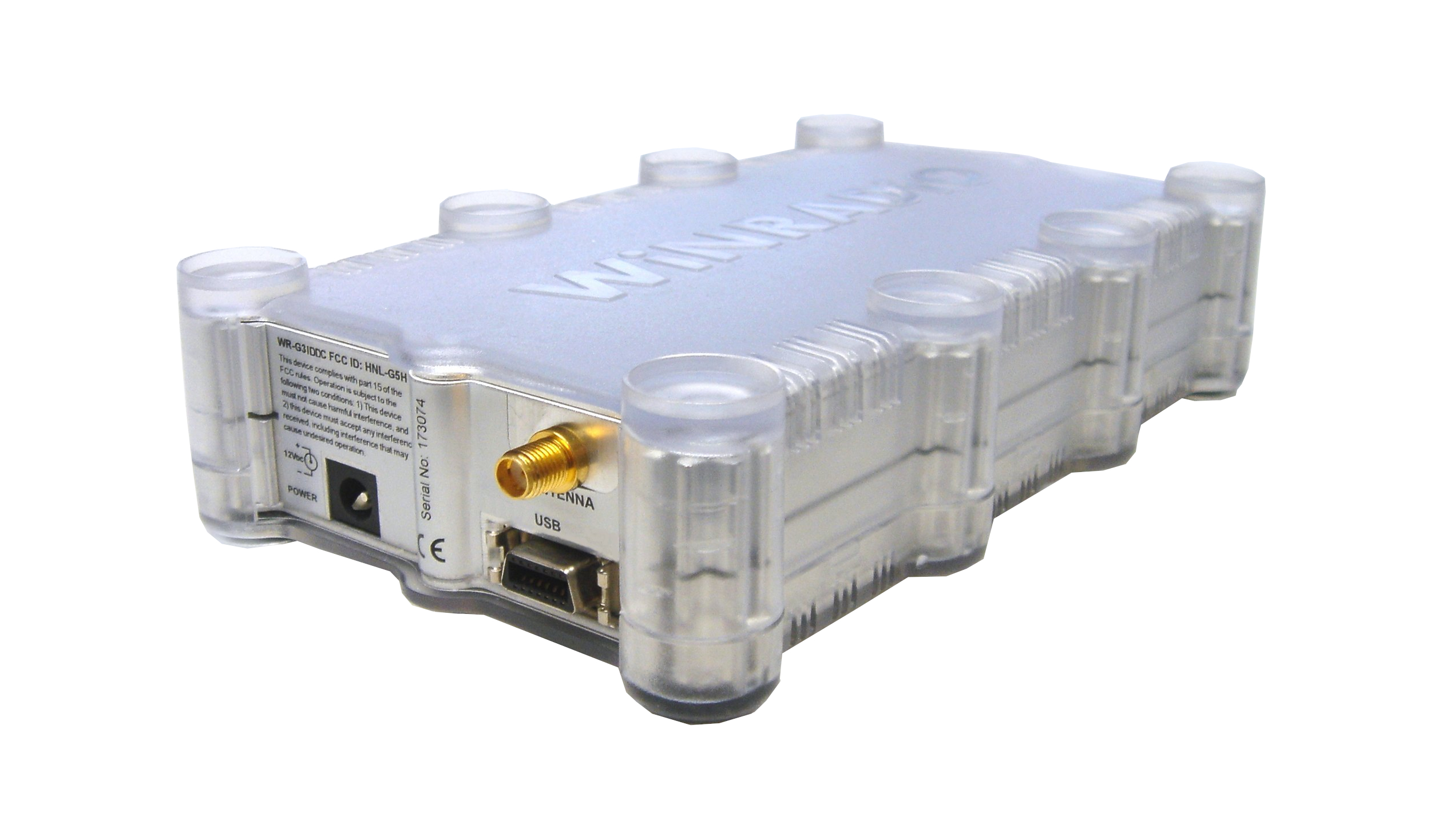

The WiNRADiO WR-G31DDC „EXCALIBUR“ is a high-performance, low-cost, direct-sampling, software-defined, shortwave receiver with a frequency range from 9 kHz to 50 MHz. It includes a real-time 50 MHz-wide spectrum analyzer and 2 MHz-wide instantaneous bandwidth available for recording, demodulation and further digital processing.

The receiver's superior performance results from its innovative, direct-sampling, digital down-converter architecture along with the use of leading-edge components and design concepts. These all result in a very high IP3, wide dynamic range, excellent sensitivity, selectivity and tuning accuracy. These key features create a receiver in a class of its own, with wide application potential, at a very affordable price.


  • 9 kHz to 49.995 MHz continuous frequency range
  • Direct sampling
  • Digital down-conversion
  • 16-bit 100 MSPS A/D conversion
  • 50 MHz-wide, real-time spectrum analyzer
  • 2 MHz recording and processing bandwidth
  • Three parallel demodulator channels
  • Waterfall display functions
  • Audio spectrum analyzer
  • Audio and IF recording and playback
  • Recording with pre-buffering
  • EIBI, HFCC and user frequency databases support
  • Very high IP3 (+31 dBm)
  • Excellent sensitivity (0.35 µV SSB, 0.16 µV CW)
  • Excellent dynamic range (107 dB typ.)
  • Selectable medium-wave filter
  • USB 2.0 interface

What's included?

The standard WR-G31DDC package includes:

  • WR-G31DDC receiver
  • User's guide
  • Application download instructions (CD ROM provided on request)
  • Low-noise switch-mode power supply
  • USB cable
  • BNC-to-SMA adapter

System requirements:

  • PC with 2 GHz dual core CPU or faster
  • One free USB 2.0 socket
  • Windows 7, 8, 10 or 11
