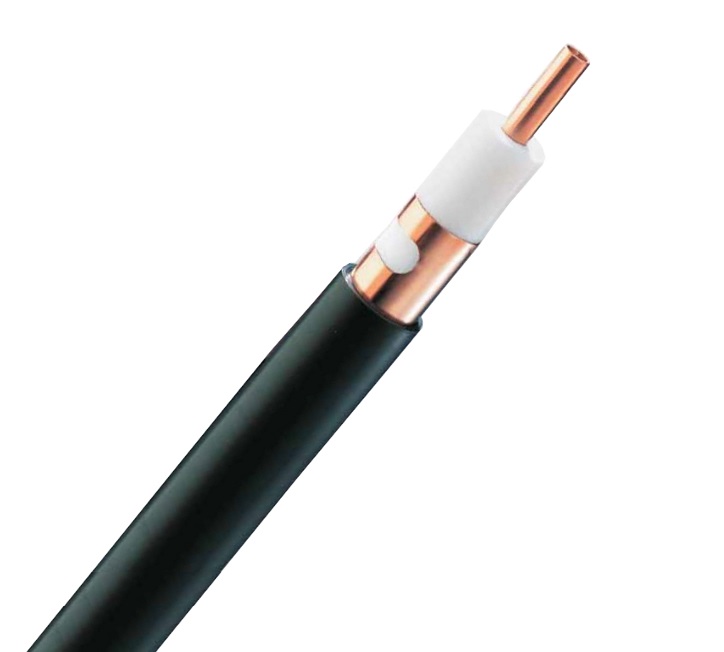

7/8" RADIAFLEX® Radiating Cable
RFS Item Number: RLFU78-50JFLA
>>> Prices and availability on request!FEATURES & BENEFITS
- RADIAFLEX® functions as a distributed antenna to provide communications in tunnels, mines and large building complexes and is the solution for any application in confined areas. Slots in the copper outer conductor allow a controlled portion of the internal RF energy to be radiated into the surrounding environment. Conversely, a signal transmitted near the cable will couple into the slots and be carried along the cable length.
- RADIAFLEX® is used for both one-way and two-way communication systems and because of its broadband capability, a single radiating cable can handle multiple communication systems simultaneously.
- This RADIAFLEX® radiating cable utilize a low-loss cellular polyethylene foam dielectric and a smooth copper outer conductor which offers a superior electrical performance together with good bending properties.
- Broadband from 30 MHz to 2400 MHz
- Heavy duty multiuse, for tunnel applications of all kind
- Easy system planning
- Insensitive to environmental influences
- Euroclass acc. to EN 50575: Dca s1b d2 a1
MECHANICAL SPECIFICATIONS
Jacket | JFL | |
Jacket Description | Halogen free, non corrosive, flame and fire retardant, low smoke, polyolefin + flame barrier tape above outer conductor for lowest cable loss | |
Slot Design | Groups of slots at large intervals | |
Inner Conductor Material | Copper Tube | |
Outer Conductor Material | Overlapping Copper Foil | |
Diameter Inner Conductor | mm (in) | 9.3 (0.37) |
Diameter Outer Conductor | mm (in) | 23.8 (0.94) |
Diameter over Jacket Nominal | mm (in) | 28.5 (1.12) |
Minimum Bending Radius, Single Bend | mm (in) | 350 (13.8) |
Cable Weight | kg/m (lb/ft) | 0.55 (0.37) |
Tensile Force | N (lb) | 2300 (507) |
Indication of Slot Alignment | Bulge atop slots | |
Recommended / Maximum Clamp Spacing | m (ft) | 0.9 (3) |
Minimum Distance to Wall | mm (in) | 50 (1.97) |
ELECTRICAL SPECIFICATIONS
Max. Operating Frequency | MHz | 2400 | |
Cable Type | RLFU | ||
Impedance | Ohm | 50 +/- 2 | |
Velocity, percent | % | 89 | |
Capacitance | pF/m (pF/ft) | 75 (22.9) | |
Inductance, uH/m (uH/ft) | µH/m (µH/ft) | 0.188 (0.057) | |
DC-resistance inner conductor | Ω/km (Ω/1000ft) | 1.74 (0.53) | |
DC-resistance outer conductor | Ω/km (Ω/1000ft) | 2.52 (0.77) | |
Stop bands | MHz | None |
TEMPERATURE SPECIFICATIONS
Storage Temperature | °C (°F) | -70 to 85 (-94 to 185) |
Installation Temperature | °C (°F) | -25 to 60 (-13 to 140) |
Operation Temperature | °C (°F) | -40 to 85 (-40 to 185) |
ATTENUATION AND POWER RATING
Frequency, MHz | Longitudinal Loss, dB/100 m (dB/100 ft) | Coupling Loss 50%, dB | Coupling Loss 95%, dB |
75 | 1,02 (0,31) | 62 (63) | 72 (73) |
150 | 1,48 (0,45) | 60 (62) | 70 (75) |
450 | 2,76 (0,84) | 66 (66) | 78 (78) |
800 | 3,93 (1,20) | 66 (67) | 77 (77) |
870 | 4,10 (1,25) | 62 (62) | 72 (74) |
900 | 4,29 (1,31) | 64 (64) | 75 (74) |
960 | 4,37 (1,33) | 64 (66) | 75 (77) |
1800 | 8,07 (2,46) | 57 (58) | 69 (70) |
1900 | 8,81 (2,69) | 58 (59) | 69 (70) |
2000 | 9,28 (2,83) | 57 (59) | 69 (70) |
2200 | 10,72 (3,27) | 57 (58) | 69 (69) |
2400 | 12,52 (3,82) | 54 (60) | 66 (71) |
