product description

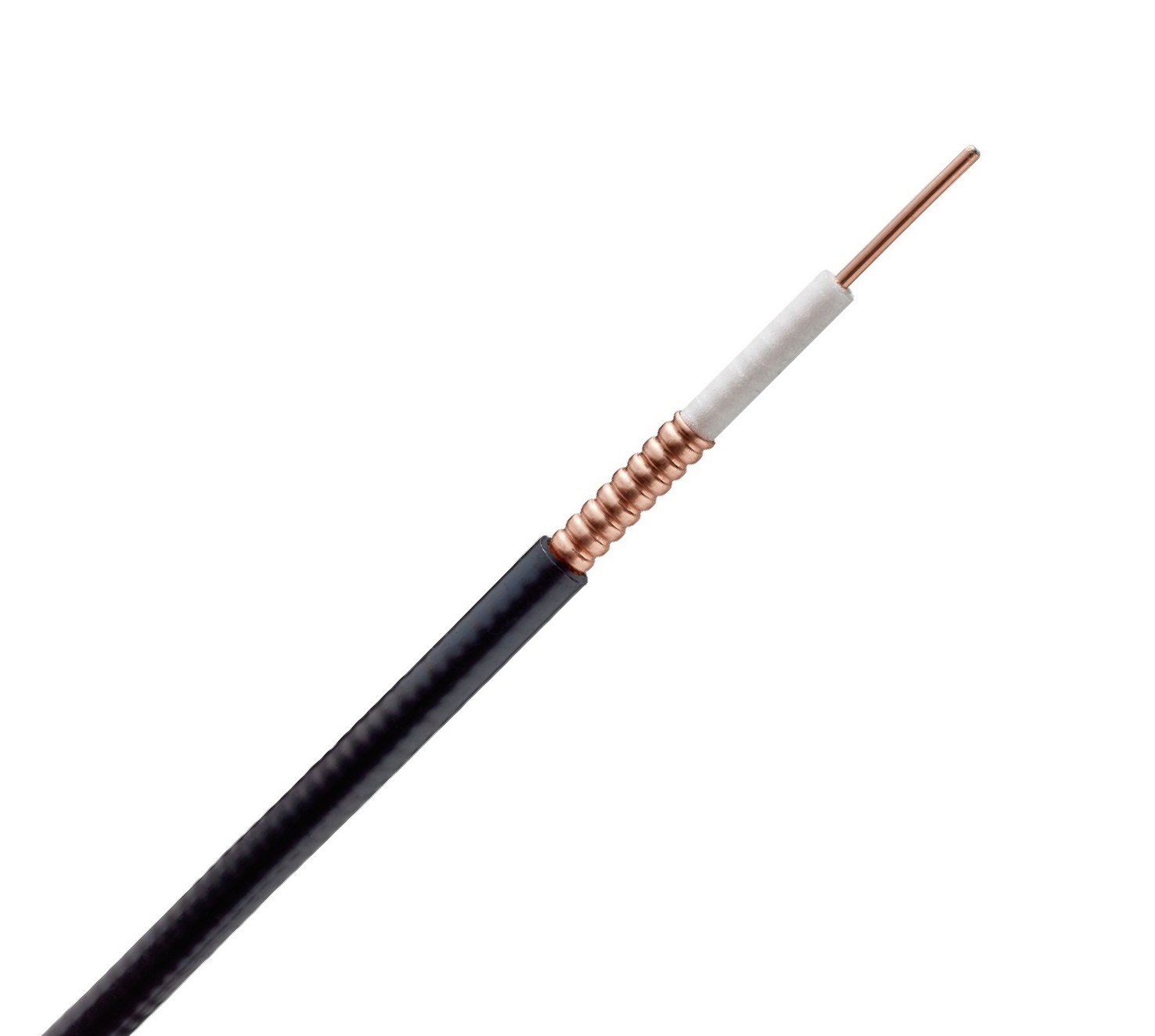

1/4" CELLFLEX® Low-Loss Coaxial Cable with flame retardant/ halogen free jacket
RFS Item Number: LCF14-50JFN
FEATURES & BENEFITS
- Low Attenuation: the low attenuation of CELLFLEX® coaxial cable results in highly efficient signal transferin your RF system.
- Complete Shielding: the solid outer conductor of CELLFLEX® coaxial cable creates a continuous RFI/EMI shield that minimizes system interference.
- Low VSWR: special low VSWR versions of CELLFLEX® coaxial cables contribute to low system noise.
- Outstanding Intermodulation Performance: CELLFLEX® coaxial cable's solid inner and outer conductors virtually eliminate intermods. Intermodulation performance is also confirmed with state-of-the-art equipment at the RFS factory.
- High Power Rating: due to their low attenuation, outstanding heat transfer properties and temperature stabilized dielectric materials, CELLFLEX® cable provides safe long term operating life at high transmit power levels.
- Wide Range of Application: typical areas of application are: feedlines for broadcast and terrestrial microwave antennas, wireless cellular, PCS and ESMR base stations, cabling of antenna arrays, and radio equipment interconnects, indoor, wireless communication, HF defense, microwave, mobile radio applications, cable solutions
- Compliance: meets or exceeds IEC 60754-1, -2; IEC 60332-1-1, -2; IEC 61034-1, -2; IEC 60332-3-24 (formerly IEC 60332-3-C)
- Euroclass acc. to EN 50575: B2ca s1b d0 a1
STRUCTURE
Size | 1/4 | |
Inner Conductor Diameter | mm (in) | 2.4 (0.09) |
Inner Conductor Material | Copper-Clad Aluminum Wire | |
Dielectric Diameter | mm (in) | 6 (0.24) |
Dielectric Material | Foam Polyethylene | |
Outer Conductor Diameter | mm (in) | 7.5 (0.3) |
Outer Conductor Material | Corrugated Copper | |
Jacket Diameter | mm (in) | 10 (0.39) |
Jacket Material | Polyethylene, PE, Metalhydroxite Filling |
TESTING AND ENVIRONMENTAL
Fire Performance | Flame Retardant, LS0H | |
Flame Retardant Jacket Specifications | Meets/Exceeds: IEC 60754-1, -2; IEC 60332-1; IEC 60332-3-24 (formerly cat C); IEC61034-1, -2; CPR (Hannover production) B2ca s1b d0 a1 | |
Installation Temperature | °C(°F) | -25 to 60 (-13 to 140) |
Storage Temperature | °C (°F) | -70 to 85 (-94 to 185) |
Operation Temperature | °C(°F) | -50 to 85 (-58 to 185) |
ELECTRICAL SPECIFICATIONS
Impedance | Ω | 50 +/- 1.5 |
Maximum Frequency | GHz | 15.8 |
Velocity | % | 83 |
Capacitance | pF/m (pF/ft) | 80 (24) |
Inductance | uH/m (uH/ft) | 0.205 (0.063) |
Peak Power Rating | kW | 10.9 |
RF Peak Voltage | Volts | 1050 |
Jacket Spark | Volt RMS | 5000 |
Inner Conductor dc Resistance | Ω/1000 m (Ω/1000 ft) | 6.1 (1.86) |
Outer Conductor dc Resistance | Ω/1000 m (Ω/1000 ft) | 4.4 (1.34) |
Return Loss (VSWR) Performance | Standard (for 40-2700, 3300-4200, 4400-5925 MHz) or Premium | |
Min. Return Loss (Max. VSWR) | dB (VSWR) | Standard 20 (1.222), Premium 24 (1.135)/ 23 (1.152) |
Phase Stabilized |
Phase stabilized and phase matched cables and assemblies are available upon request. |
|
Temperature & Power | Standard |
MECHANICAL SPECIFICATIONS
Cable Weight, Nominal | kg/m (lb/ft) | 0.11 (0.074) |
Minimum Bending Radius, Single Bend | mm (in) | 40 (1.6) |
Minimum Bending Radius, Repeated Bends | mm (in) | 85 (3.3) |
Bending Moment | Nm (lb-ft) | 1.9 (1.4) |
Tensile Strength | N (lb) | 890 (200) |
Recommended / Maximum Clamp Spacing | m (ft) | 0.5 / 1 (1.75 / 3.25) |
