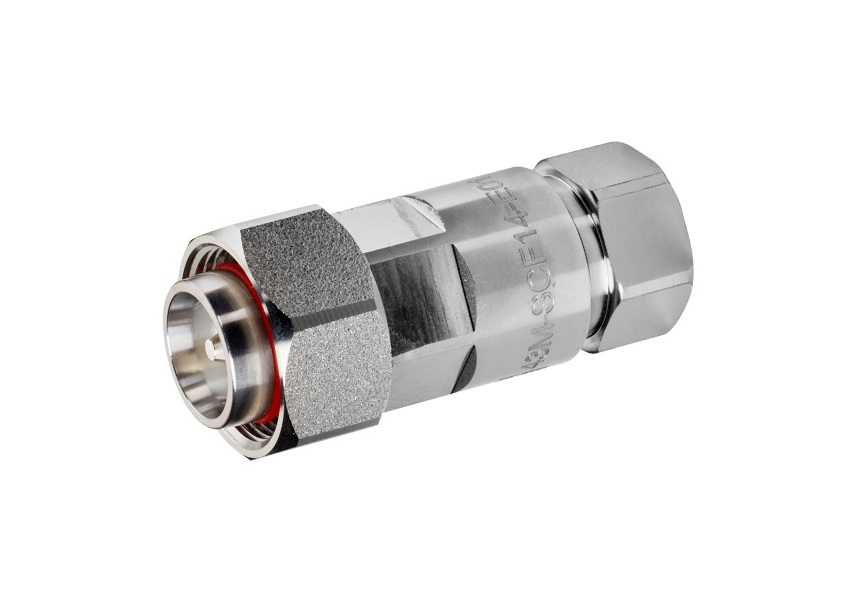

4.3-10 Male Premium Connector for 1/4"

Product.Nr.: 802104

product description

4.3-10 Male Premium Connector for 1/4" Coaxial Cable, Straight,

RFS Item Number: 43M-SCF14-E01

OMNI FIT™ high performance connectors are designed for CELLFLEX®  cables. They are designed specifically to provide the highest quality connector-cable interface while simplifying and speeding up connector attachment. All RFS connectors are fully tested for mechanical and electrical compliance to industry specifications.
The 4.3-10 connector is an innovative, space-saving RF connection meeting all requirements even under the most severe environmental conditions and not relying on coupling nut torque. Sealing against outer conductor and jacket by means of the o-ring and 360° compression fit. Multifunctional, self-lubricating HighTech polymer assembly locks on cable corrugation, avoids electrochemical potential differences and compression-fits to the jacket.


  • Ultra high PIM performance i.e. reduced interference leading to high customer satisfaction
  • Two-piece design i.e. visual inspection of interlocking leads to improved installation security
  • OMNI FIT™ concept i.e. streamlined order management and reduced stock level
  • Watertight sealing in mated and unmated condition, i.e. reduced efforts during installation and improved security during operation
  • Tri metal alloy plating i.e. extreme resistance against corrosion even under hardest climatic and environmental circumstances
  • Multi-thread (Tristart) design i.e. simplified and accelerated tightening process
  • RoHS (EU) and CRoHS (China) compliant i.e. can be used on a global basis

Electrical Specifications

Nominal Impedance, ohms Ohm 50
3rd Order IM Product @ 2x20 Watts dBc
-163 ; typical -167
Maximum Frequency GHz 6
VSWR, Return Loss VSWR (dB) DC < f ≤ 1.0 GHz: 1.03 (37)
1.0 < f ≤ 2.2 GHz: 1.06 (31)
2.2 < f ≤ 2.7 GHz: 1.08 (28)
2.7 < f ≤ 3.8 GHz: 1.12 (25)
3.8 < f ≤ 5.0 GHz: 1.17 (22)
5.0 < f ≤ 6.0 GHz: 1.22 (20)

Mechanical Specifications

Plating Outer/Inner   Tri metal alloy / Silver
Length mm (in) 49 (1.929)
Outer Diameter mm (in) 20 (0.787)
Inner Contact Attachment   Basket
Outer Contact Attachment   360° clamping
Waterproof Level   IP68
