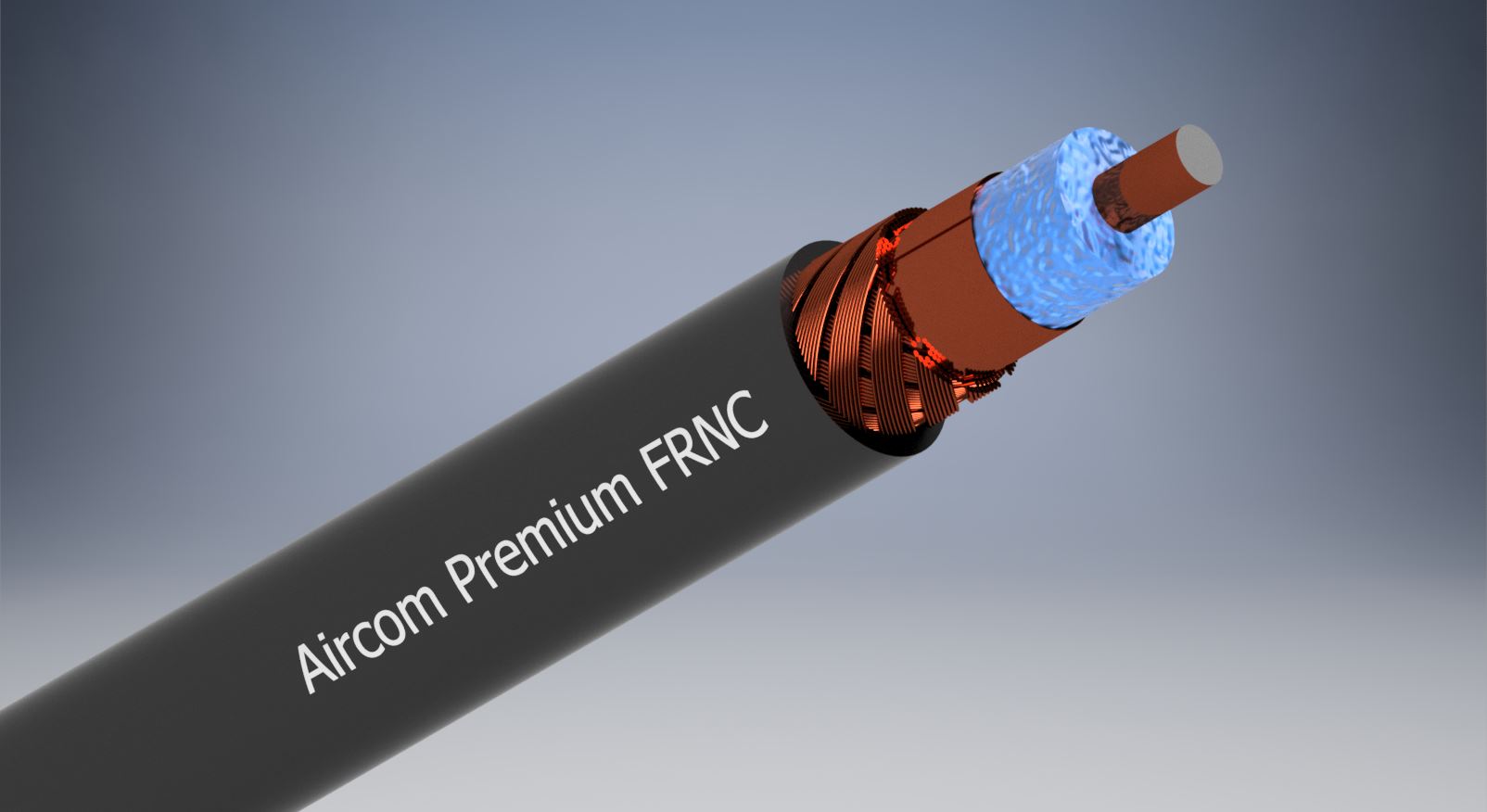

Aircom Premium FRNC Coaxial Cable

Product.Nr.: 60600F

product description

Aircom Premium FRNC is an ultra-low attenuation coaxial cable with an upper limit frequency of 12 GHz. It is characterized by a very low weight and a very low attenuation. The high-precision shaped aluminum inner conductor is enclosed by a copper foil, which is applied to the inner conductor and welded there. The skin effect ensures a high-performance RF line. The precise formability of the aluminum core is responsible for almost no defects in the entire frequency range. In addition, the new cable of the Aircom family is most suitable for digital modulation methods, as it is very low in intermodulation.

The extremely low attenuation of Aircom Premium FRNC is achieved by a low-loss PE dielectric. The material is also resistant to moisture. In order to achieve good shielding with low losses, the outer conductor of the Aircom Premium is made of two layers of copper: on a thin, overlapping copper foil, a shielding braid with a coverage of 75% is applied. The film is PE-coated on the inside and thus protected against crack formation with a single too small bending radius. The jacket of the cable is made of special thermoplastic copolymer, the halogen-free, flame-retardant material FRNC (Flame Retardant Non Corrosive). As a result, Aircom Premium FRNC has a low fire load, low fire propagation and minimal flue gas development. Aircom Premium FRNC is a coaxial cable for most applications in the news and radio technology: it is flexible, low-attenuation and anti-radiation.

Characteristics:
Diameter 10.2 ± 0.2 mm
Impedance 50 ± 2 Ω
Attenuation at 1 GHz / 100 m 11.88 dB
f max 12 GHz


Properties:
Sheath material according to DIN EN 50290-2-27 (HD 624.7)
Flame retardant according to IEC 60332-1-2
Manufactured according to DIN EN 45545-2 Table 5 R15 HL2
RoHS compliant (Directive 2011/65/EC & 2015/863/EU RoHS 3)
Fire retardant, low smoke, halogen free (LSZH)
Corrosivity of combustion gases according to IEC 60754-2
Smoke density according to IEC 61034
UV-resistant
