Transceiver

ZS1 - Full Digital Transceiver for SW

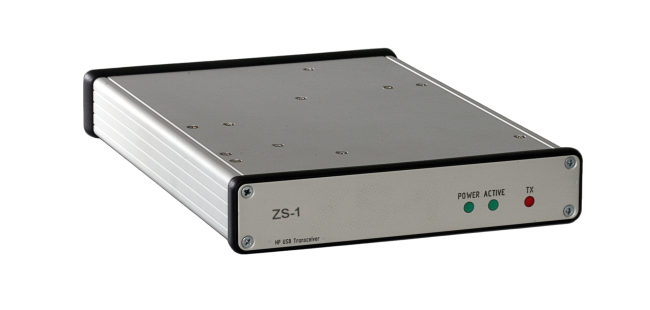

The ZS-1 is a real software defined shortwave transceiver for the classic HF amateur bands, including WARC bands, offering an output power of up to 15 W. For receiving purposes, the transceiver covers all fequencies between 300 kHz to 30 MHz. High quality band pass filters ensure clean signals. A broadband spectrum and waterfall display inform simultaneously about activities within a given band, so no pile up will remain undetected.

Send inquiry

The ZS-1 transceiver is a product manufactured by SSB-Electronic in Germany. The transceiver is connected to the PC via a USB2.0 connection, a built-in interface additionally allows to operate the unit via an IP address, and also CAT-connectivity is ensured. The delivery includes the comfortable operation software Zeus Radio, which was written especially for the ZS-1. It offers access to all functions, including the comprehensive settings for the digital signal processing of the microphone input and the integrated CW keyer. Furthermore the software packages Ham Radio Deluxe and SDR.com may be used in conjunction with the ZS-1.

The transmitter output power is adjustable from 0 dBm (within the entire range, for antenna analysis or operation of a transverter) up to 15 W within the amateur radio bands. A power monitor with additional display of voltage and current is included, too, including software protection of the final amplifier against high values.

A dozen good reasons for purchasing the ZS-1:

Helpful information on the ZS-1 Transceiver:
