product description
>>> Prices and availability on request!
Application
The speaker cable 2 × 2,5 mm² (14 AWG) connects speakers to amplifiers or audio systems in the home, studio and PA sector. It is suitable for fixed or flexible installation in dry indoor areas.
Technical data
| Inner conductor | Cu, OFC stranded 2,45 mm² |
| Inner conductor ⌀ | 50 x 0,25 mm (2,10 mm) |
| Insulation | LSZH (red, black) + talcum |
| Insulation ⌀ | 3,5 mm |
| Twisted cables ⌀ | 7,0 mm |
| Outer jacket (pipe type-not filled) | LSZH, halogen-free and UV resistant (green) |
| Outer diameter | 9,1 mm |
| Weight of copper conductors | 45,3 kg/km |
| Weight | 123,9 kg/km |
| Standards | EN 50575 (fire class Cca), IEC 60332-1-2 |
Electrical characteristics
| Conductor resistance | ≤ 9,0 Ω/km |
| Mutual capacitance | 55 pF/m |
| Insulation resistance | > 5 MΩ*km |
| Temperature range | -20 °C to +70 °C |
| Conductor adhesion value | 27,1 ÷ 54,1 N / 25 mm |
| Tensile strength | ≥ 10 N/mm² |
| Elongation | ≥ 160 % |

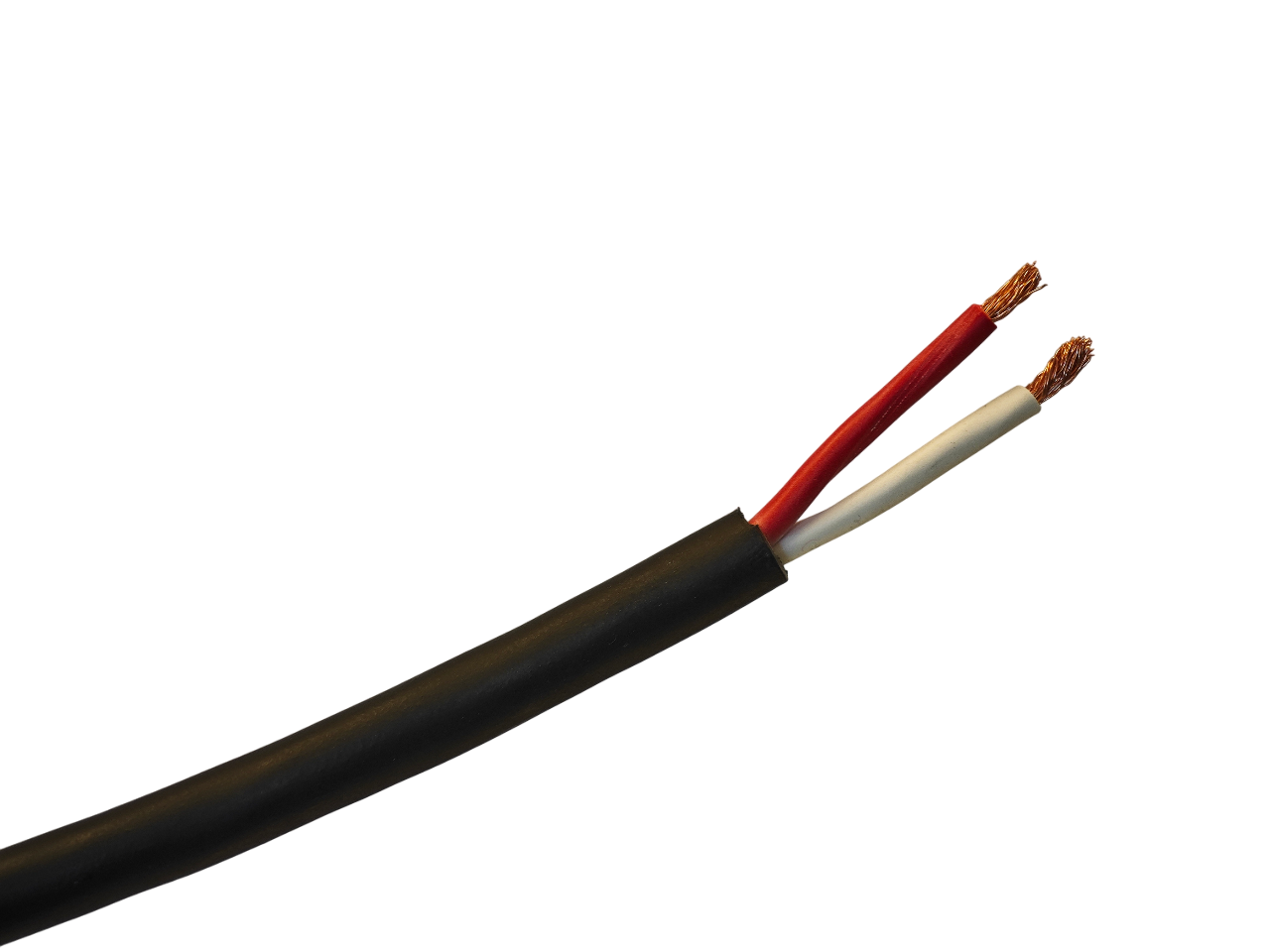

* Picture similar: the actual cable may differ from the illustration.
